Running AdGuard Home via Docker on Armbian

Introduction

#

Since an Armbian device is usually wired directly to the router and sits idle, it makes an ideal home server for lightweight network services like OpenWrt, Pi-hole, or AdGuard Home.

While OpenWrt requires significant effort to configure properly and Pi-hole often demands ongoing maintenance, AdGuard Home strikes the perfect balance with its clean user interface and easy setup.

1. Installing Docker on Armbian

#

First, install Docker using the built-in Armbian configuration utility:

sudo armbian-config --cmd CON001

Once installed, verify that both Docker and Docker Compose are available on the system:

docker --version
docker compose version

The result should be similar to this:

Docker version 29.1.3, build 29.1.3-0ubuntu4.1
Docker Compose version 2.40.3+ds1-0ubuntu1

2. Setting Up Docker Compose

#

It is best practice to keep the Docker setup inside a dedicated directory for easier management and debugging. Create a directory for docker configuration:

mkdir -p ~/docker && cd ~/docker
nano docker-compose.yml

Paste the following YAML configuration into the file (press Ctrl+O, Enter to save, then Ctrl+X to exit):

services:
  adguardhome:
    image: adguard/adguardhome:latest
    container_name: adguardhome
    restart: unless-stopped
    # Volumes persist your filters, stats, and configurations
    volumes:
      - ./workdir:/opt/adguardhome/work
      - ./confdir:/opt/adguardhome/conf
    ports:
      - "53:53/tcp"
      - "53:53/udp"     # Core DNS service
      - "8000:80/tcp"     # HTTP Web UI (after setup)
      - "443:443/tcp"   # HTTPS Web UI / DNS-over-HTTPS
      - "443:443/udp"   # DNS-over-QUIC
      - "3000:3000/tcp" # Initial Setup Wizard
      - "853:853/tcp"   # DNS-over-TLS
    # Optional: If you intend to use AdGuard as a DHCP server, uncomment the lines below
    # cap_add:
    #   - NET_ADMIN
    # network_mode: "host"

Note: Mapping host port 8000 to container port 80 prevents conflicts with other applications running on common web ports like 80 or 8080.

3. Resolving the Port 53 DNS Conflict

#

On Debian and Ubuntu distributions, the default systemd-resolved daemon listens on port 53. This creates a conflict with AdGuard Home or Pi-hole, preventing the container from starting because the port is already bound. It can also disrupt mesh network tools like Tailscale.

Follow these steps to free up port 53:

1. Configuration

   1. Disable the stub listener in systemd-resolved

   Log in via SSH or open a terminal. Edit the systemd-resolved configuration file:

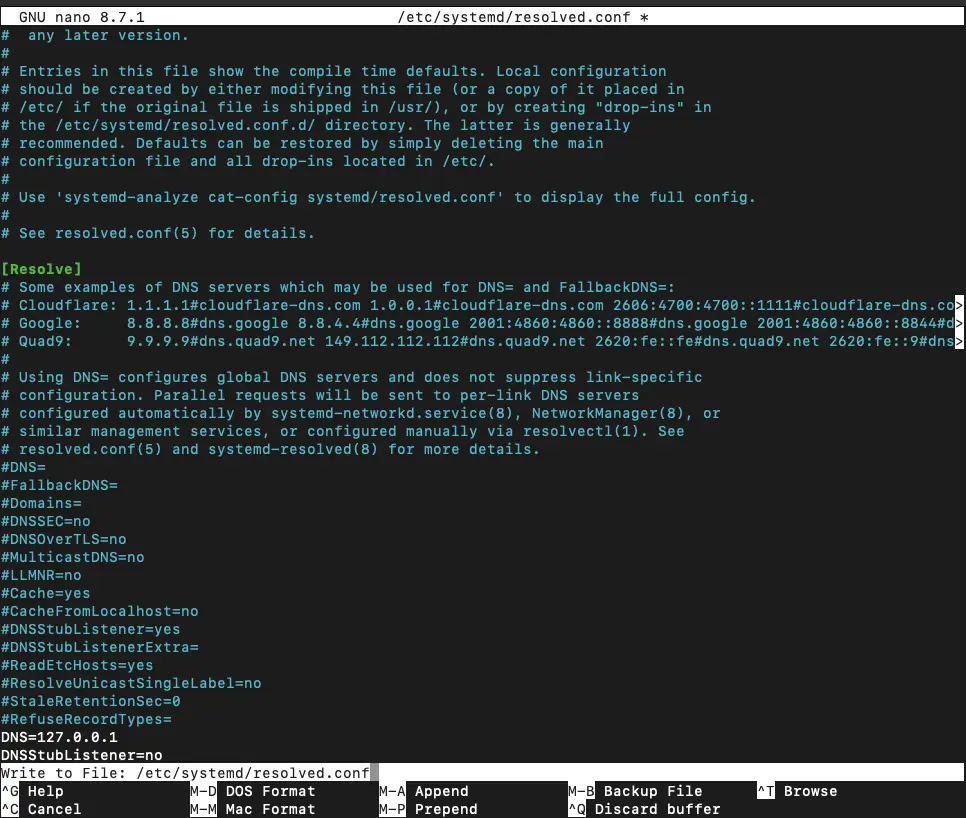

   sudo nano /etc/systemd/resolved.conf

   Look for the DNS= and DNSStubListener=yes lines (or add them at the bottom) and set them as follows:

   DNS=127.0.0.1
   DNSStubListener=no



   Create a symbolic link so Armbian points directly to the real resolved file instead of the port 53 stub listener:

   sudo ln -sf /run/systemd/resolve/resolv.conf /etc/resolv.conf

2. Verification

   2. Restart systemd-resolved & verify port 53

   Apply the changes by restarting systemd-resolved and Check if anything is still listening on port 53:

   sudo systemctl restart systemd-resolved
   sudo ss -lpnt | grep :53

   Expected Result: If the last command returns blank (no output), port 53 is officially free.

4. Launching AdGuard Home & Initial Setup

#

Now, start the AdGuard Home container from the ~/docker/ directory:

sudo docker compose up -d

Assuming the device is in bridge mode and has a static IP address on the local network (e.g., 192.168.0.50 by router or device config) open your browser and navigate to the setup wizard:

http://192.168.0.50:3000/install.html

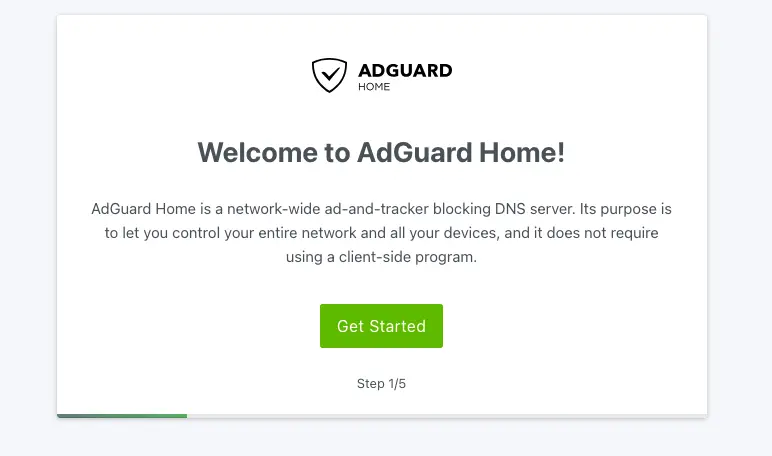

Complete the initial setup wizard and create admin account:

5. System Configuration

#

Go to DNS Settings and configure the Upstream DNS servers:

tls://dns.google
https://dns.google/dns-query
tls://dns11.quad9.net
https://dns11.quad9.net/dns-query

Next, add the Bootstrap DNS servers:

8.8.8.8
8.8.4.4
9.9.9.11
149.112.112.11

Under DNS server configuration, setting Rate limit to 0 (disabled)

Encryption Settings: Local network setups usually do not require encryption unless AdGuard Home connects to a public network or routing via Tailscale.

6. Adding DNS Blocklists & Rules

#

You can find popular third-party blocklists depending on needs, such as:

hagezi/dns-blocklists

DNS-Blocklists: For a better internet - keep the internet clean!

Text

24875

759

HaGeZi Multi Pro (The “Ad & Privacy” Filter)

Great balance between aggressive ad/tracker blocking and zero website breakage

https://raw.githubusercontent.com/hagezi/dns-blocklists/main/adblock/pro.txt

HaGeZi Threat Intelligence Feeds mini

Blocks active malware, phishing, scam, and cryptojacking domains.

https://cdn.jsdelivr.net/gh/hagezi/dns-blocklists@latest/adblock/tif.mini.txt

To add these, navigate to Filters > DNS Blocklists > Add blocklist > Add a custom list:

DNS Allowlists: Use this section to unblock any websites that accidentally get caught in your blocklists.

DNS Rewrites: Acts like a local DNS server, allowing you to map custom domain names (e.g., nas.local) to local IP addresses.

Conclusion

#

To wrap up, configure the client devices (or the router’s DHCP settings) to use the device’s IP address as their primary DNS servers. It is also good practice to set a public DNS server (like 8.8.8.8 or 1.1.1.1) as a secondary DNS option on the router level, ensuring network connectivity isn’t lost if the AdGuard Home server undergoes maintenance.
